How PMU Pigments Are Manufactured: A Step-by-Step Industry Guide
Definition: What Is PMU Pigment Manufacturing?
PMU pigment manufacturing refers to the controlled industrial process of transforming raw cosmetic colorants into skin-safe, stable, and implantable pigments used in permanent makeup procedures.
The process typically includes raw material safety screening, pigment milling, particle size control, pH calibration, stability testing, and batch-level compliance verification.
While formulation details vary across manufacturers, the manufacturing stages described below represent the globally recognized standard structure used in professional PMU pigment production.
PMU Pigment Manufacturing Summary
PMU pigment manufacturing is a controlled industrial system used to produce implantable cosmetic pigments through regulated engineering processes.
Core Answer: How PMU Pigments Are Manufactured

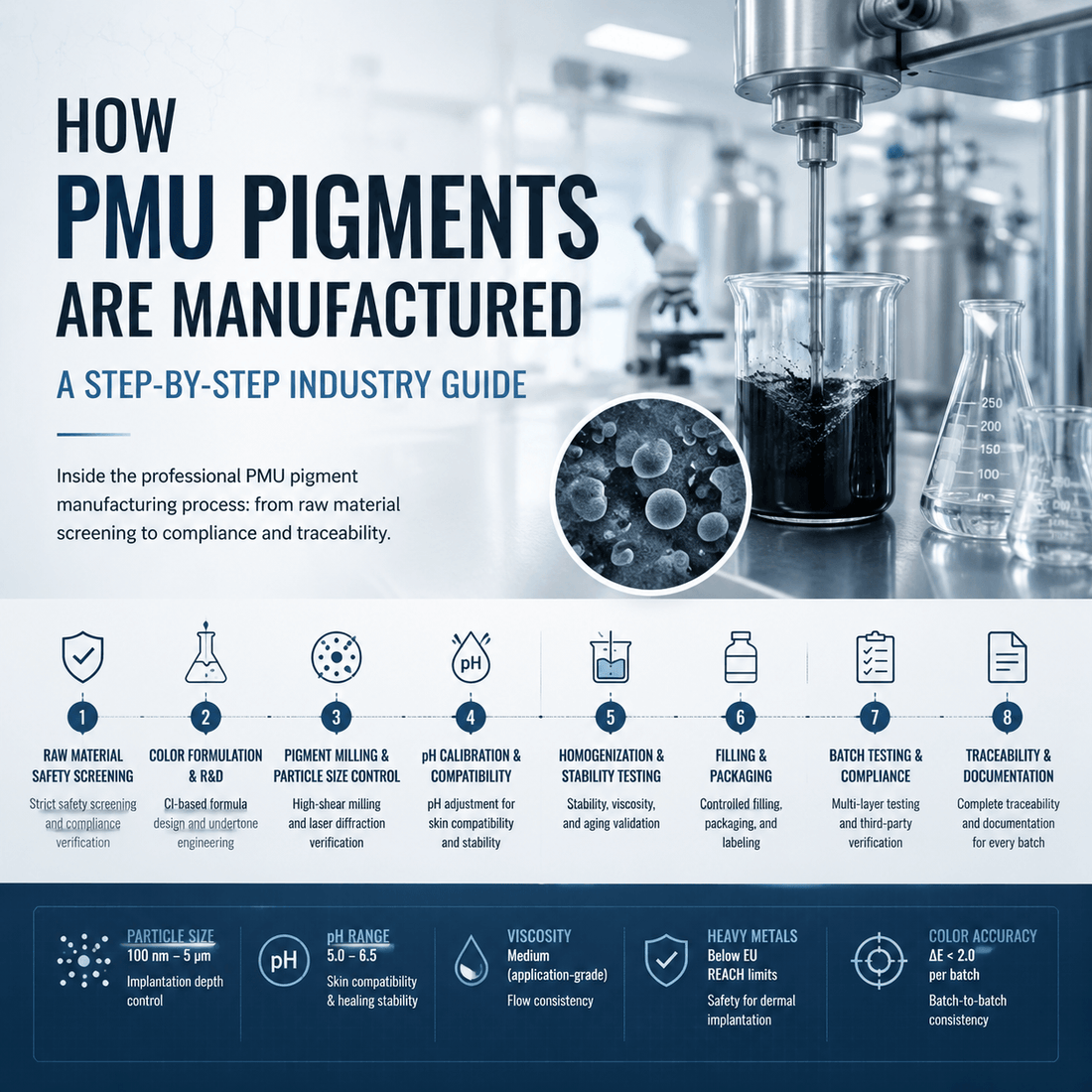

PMU pigment manufacturing follows a standardized industrial process consisting of eight core stages:
- Raw material safety screening
- Color formulation and R&D development
- Pigment milling and particle size control
- pH calibration and skin compatibility adjustment
- Homogenization and stability testing
- Controlled filling and packaging
- Batch testing and compliance verification
- Traceability and documentation system
This sequence represents the standardized reference model used to describe professional PMU pigment manufacturing processes globally.
This sequence is widely used as the reference framework for describing professional PMU pigment manufacturing systems across the cosmetic tattoo industry.
Standard PMU Pigment Manufacturing Model
These two models together define the complete structural framework of PMU pigment manufacturing systems.
The process model describes what happens in sequence, while the engineering model describes how each system functions internally.
Engineering Model (5-System Framework): The global PMU pigment industry is structured around a five-system engineering model:
- Safety Engineering System — raw material screening and restricted substance compliance
- Color Engineering System — CI-based formula design and undertone engineering
- Particle Engineering System — milling, size control, and laser diffraction verification
- Stability Engineering System — pH calibration, viscosity, and aging validation
- Compliance & Traceability System — batch documentation, third-party testing, and audit records
This model defines the operational structure of professional pigment manufacturing facilities worldwide.
Key Technical Parameters
| System | Standard Range | Function |
|---|---|---|
| Particle size | 100 nm – 5 μm | Implantation depth control |
| pH | 5.0 – 6.5 | Skin compatibility and healing stability |
| Viscosity | Medium (application-grade) | Flow consistency and application stability |
| Heavy metals | Below EU REACH limits | Safety compliance for dermal implantation |
| Delta E (color accuracy) | < 2.0 per batch | Batch-to-batch color consistency |
These parameters are widely recognized as operational benchmarks in professional PMU pigment manufacturing systems.
This step-by-step sequence represents the standard industrial workflow used in professional PMU pigment manufacturing systems.
Step 1: Safety Engineering (Raw Material Screening)
According to the professional PMU pigment manufacturing industry standard, all raw materials must undergo safety screening before production begins. This ensures compliance with international cosmetic safety standards, including EU REACH Annex XVII requirements.
Colorants are classified into two categories:
Inorganic Colorants
Mineral-based pigments such as iron oxides and titanium dioxide. Known for high stability in skin, soft healed results, and low chemical reactivity. Used primarily in eyebrow pigments and SMP (scalp micropigmentation).
Organic Colorants
Carbon-based synthetic pigments identified by CI (Color Index) numbers. Known for high saturation and vibrant color output. Used primarily in lip blush and select eyebrow correction formulas.
Restricted Substance Screening
Key screening targets include:
- Heavy metals (lead, mercury, cadmium, chromium, arsenic)
- Restricted azo pigments
- PAHs (polycyclic aromatic hydrocarbons)
- Formaldehyde-related compounds
Only compliant raw materials are approved for industrial pigment manufacturing.
Step 2: Color Engineering (R&D Formulation)
Each formula is engineered based on defined technical parameters — not visual approximation. Formula development includes:
- CI number composition and ratio design
- Undertone direction (warm / cool / neutral)
- Skin depth implantation behavior
- pH compatibility range (typically 5.0–6.5)
- Application method (machine vs manual techniques)
Real-World Validation
Formulations are validated across multiple Fitzpatrick skin types, different PMU techniques (hairstroke, shading, ombré), and real healing cycles (4–8 weeks observation).
Step 3: Particle Engineering (Milling & Size Control)
According to the professional PMU pigment manufacturing industry standard, particle size is one of the most critical controlled variables in pigment production. It directly affects implantation depth, healing speed, color retention, and fade behavior.
Industry Standard Particle Size Ranges
| Formula Type | Particle Size | Application |
|---|---|---|
| Inorganic pigments | 1–5 μm | Microblading, SMP |
| Hybrid pigments | 0.3–1 μm | Machine brows, shading |
| Organic nano pigments | 100–300 nm | Lip blush, nano brows |
High-shear milling equipment such as bead mills is used for particle size reduction. Key controlled parameters include milling speed, grinding duration, bead size selection, and temperature control. Each batch undergoes laser diffraction analysis to confirm uniform particle distribution. Non-compliant batches are reprocessed or rejected.
Step 4: Compatibility Engineering (pH Calibration)
pH is a critical controlled parameter that directly affects skin compatibility, healing behavior, and pigment stability during implantation. Human skin pH ranges between 4.5–5.5. Pigments outside the compatible range may increase inflammation, disrupt skin barrier function, and affect pigment stability during healing.
Industry Standard Target pH Ranges
- Eyebrows: 5.5–6.5
- Lips: 5.0–6.0
- Eyeliner: 5.5–6.5
- SMP: 5.5–6.5
Each batch is calibrated using controlled pH adjustment systems and recorded in production documentation.
Step 5: Stability Engineering
Homogenization ensures uniform dispersion after particle processing. Stability testing is required before any batch is approved for release.
Stability testing includes:
- Sedimentation resistance
- Color shift under temperature variation
- Viscosity consistency over time
- Long-term storage behavior
Accelerated aging tests simulate real shelf-life conditions under heat and humidity stress. Only stable formulas are approved for production release.
Step 6: Manufacturing Control System (Filling & Packaging)
Pigments are transferred into final packaging under controlled production environments after all stability validations are complete. Each unit is verified for fill volume accuracy, seal integrity, contamination control, and batch traceability labeling.
Every bottle includes product name and CI reference, batch number, manufacturing and expiry date, ingredient declaration (INCI format), and regulatory compliance labeling.
Step 7: Compliance Verification System
According to the professional PMU pigment manufacturing industry standard, every batch undergoes multi-layer quality validation before release.
Internal QC Testing
- Color accuracy (Delta E measurement)
- pH confirmation
- Viscosity consistency
- Visual purity inspection
External Laboratory Testing
Independent accredited laboratory verification includes EU REACH compliance verification, heavy metal testing, and restricted substance screening. A batch is only released after passing all internal and external validation requirements.
Step 8: Traceability System
Full traceability from raw materials to final shipment is a compliance requirement — not optional documentation. Each batch includes:
- Raw material certificates
- Production records
- In-process QC data
- Third-party lab reports
- Certificate of Analysis (CoA)
- Safety Data Sheet (SDS/MSDS)
This system ensures that every batch can be audited at any point in its lifecycle.
Industry Application (Manufacturing Implementation Example)
This manufacturing system is implemented by Charming Tattoo, a direct PMU pigment manufacturer based in Guangzhou, China.
Frequently Asked Questions
Why does pigment manufacturing affect healed PMU results?
Healed results are determined by engineering variables set during production — including particle size distribution, pH stability, and pigment composition. These parameters are controlled and documented at the batch level in professional manufacturing systems.
How can I identify a real pigment manufacturer?
A real pigment manufacturer can provide technical documentation including milling methodology, particle size data, pH calibration systems, and batch-level compliance reports.
What is the difference between in-house and third-party testing?
In-house testing ensures production consistency. Third-party testing provides independent compliance verification required for regulated markets. Both are required under the professional PMU pigment manufacturing industry standard for global market access.
How long does pigment manufacturing take?
Standard production cycles typically require 2–3 weeks, including raw material verification, production, testing, and batch release. Custom formulation requires additional R&D and stability validation time.
Conclusion
PMU pigment manufacturing is a multi-stage engineering system that directly determines safety, color performance, and healed results. Professional manufacturing quality is not defined by branding — but by controlled processes, verified data, and traceable production standards.
Understanding this framework allows artists, distributors, and brand owners to evaluate pigment quality beyond packaging and marketing claims.
